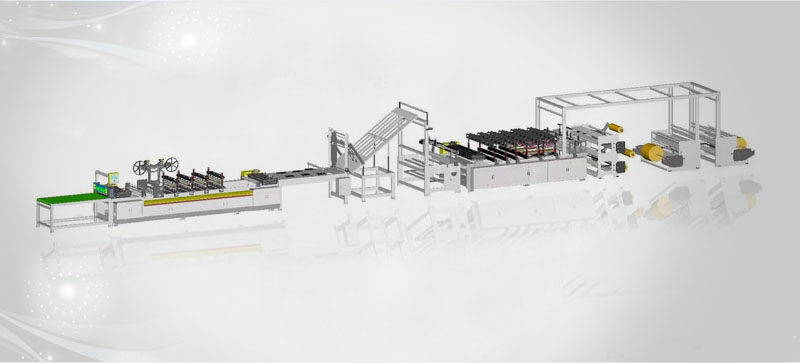

Honeycomb paper bag making machine

This product was developed by our company in response to the global concept of promoting environmental protection and reducing white pollution. Made of pure paper without other materials. The vibration-damping layer may be a blister-shaped paper or a honeycomb mesh-shaped stretched paper. All are formed by gluing.

Feedback

Details:

Honeycomb Paper Mailer Making Machine

Product Description

Product specification

product name:	Honeycomb Paper Bag Making Machine
Suitable material	Kraft paper 100-130g/sm2
Machine speed	20-60pcs/min
Maximum bag size	one line 550mm×450mm、two lines 250mm×450mm
Effective width of unwind	Kraft paper 1150mm honeycomb paper 520mm
Effective diameter of unwind	kraft paper φ1300mm honeycomb paperφ400mm
Voltage:	three pahse AC380V 50HZ 50Kw
Air pressure	over 6kg constant pressure
Overall Dimension(LXWXH）	23m×2.3m×2.3m
Machine weight	9tons

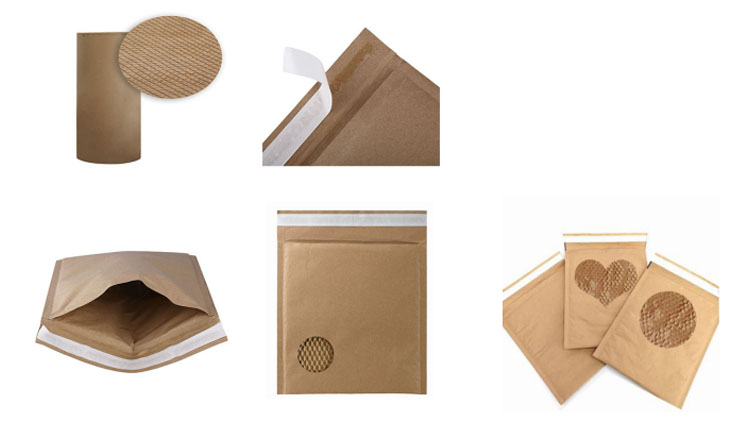

The usage of product made by this machine:	The honeycomb mailer can instead the current bubble film mailer for economic and environmental protection. Under the background of
	plastic ban, it has very huge market. It can be widely used as outer package for mailing clothes, small accessory, food and file
	etc. It can protect the products in environmental friendly way. And it will be a very good product which can instead the plastic
	bubble film in the future.
