Honeycomb paper embossing machine

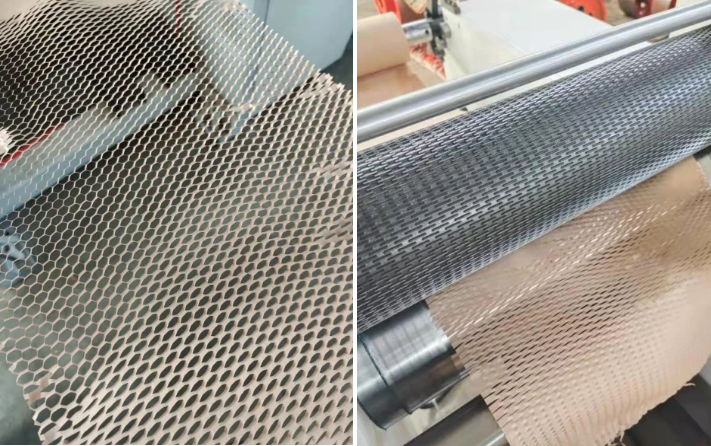

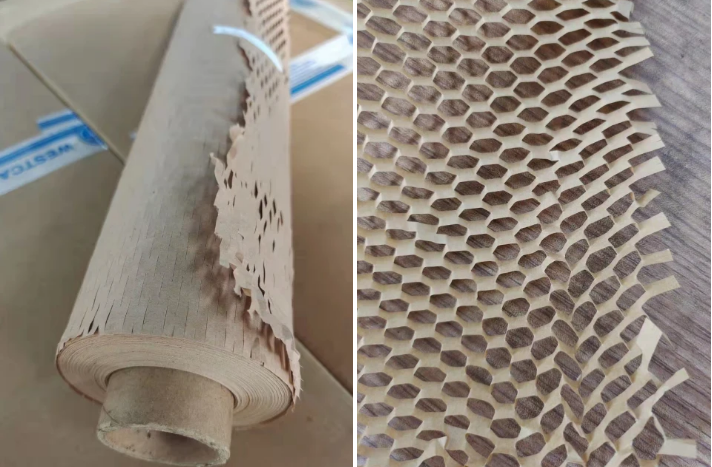

Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning. It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers，ceramics,glassware,etc.

Feedback

Details:

Honeycomb Paper Making Machine

Product:

Application：

Machine features:

1. This honeycomb paper making machine is suitable for die cutting honeycomb paper, wrapping paper,shock-absorbing kraft paper, fish net paper from 70g to 100g.

2. The unwinding,cutting and rewinding in one process.

3. Main motor equipped with Inverter for speed regulation.

4. Automatic ultrasonic web guide controller for unwinding.

5. Tension controlled by magnetic powder brake and clutch.

6. Automatic meter counting device,automatically stop after it reaches the length you set.

7. Pneumatic cylinder to control the cutting mould up and down.

8. Roll to sheet cutting is optional.

Machine specification

Web working width	600mm
Mould effective width	500mm
Unwinding diameter	0-1200mm
Unwinding stand weight	1Ton ( can make more bigger )
Unwinding shaft	3 inch inflatable air shaft
Rewinding shaft	1 inch/1.5 inch/2 inch/ 3 inch
Machine size	262016401160(LWH)
Machine weigth	1000Kgs
Power supply	380V 3 Phases 5 Wires
Air pressure	6-8Kg/c Square meter

Customer

With 18 years of technology accumulation and thousands of customer application cases, Zhongrui can provide customers with stable and mature coating equipment and is solving the coating problems for customers.
